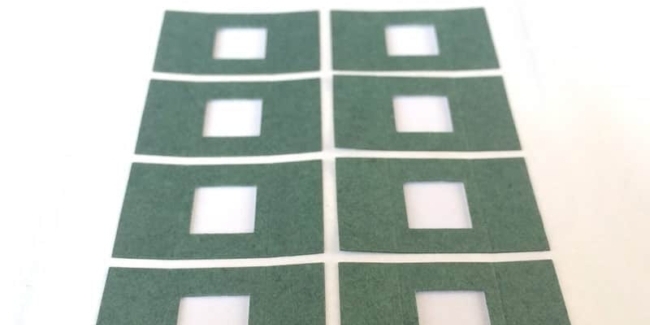

Leatheroid Electrical Insulation Gaskets
Here at Advanced Seals & Gaskets Ltd, we supply Leatheroid electrical insulation in a variety of sizes and convert it in-house to meet our customers' requirements. Leatheroid is a cost-effective, high-quality material that offers strength, but is also lightweight, making it an excellent material for a range of applications. Due to the product's versatile nature, we use it to manufacture a wide variety of products including our Leatheroid electrical insulation gaskets. Our Leatheroid electrical insulation gaskets can be manufactured plain or self-adhesive backed with peel-able liner on one or both sides.
Whether we manufacture as a one-off or in large quantities, we work closely with our customers throughout the manufacturing process to provide a completely bespoke service. Utilizing state-of-the-art machinery and techniques such as die cutting and punching, and CNC-cutting, we produce top quality products that meet a wide range of specifications.
Leatheroid electrical insulation is available from us in many other forms including:
Product Enquiry
For information on Leatheroid Electrical Insulation Gaskets please complete the following quick enquiry or call us on +44(0)1384 252555.
Product Specification & Key Characteristics
- Standard Thickness: 0.1mm to 1mm
- Standard Width: 700mm
- Colour: Blue/Grey
- Thermal stability: Up to 100°C
- Tensile strength: 50-125 N/15mm
- Oil absorption: 18-22%
- Tensile strength: 50-125 N/15mm
- Thickness: 0.13mm to 0.50mm
- Oil absorption: 18-22%
Full technical data can be supplied upon request,
or downloaded from our online portal.
Help and guidance
If you would like to speak to a representative to discuss your specific application or requirements please call our sales office direct on 01384 469100, alternatively you can send an E-mail. Simply click on the link and forward us your details along with your question and we will contact you immediately.
Samples - Technical Leatheroid Electrical Insulation Gaskets
Samples can be submitted for testing upon request.
Call now for sample requests or further help.
What is Leatheroid Electrical Insulation?
Leatheroid electrical insulation is also known as Leatheroid paper or Elephantidae. It’s a cellulose material very similar to vulcanized fibre and is prepared using unsized cotton rag paper and mineral acid.
Leatheroid electrical insulation is grey/blue in colour, manufactured in continuous rolls and comes in a wide range of thicknesses from 0.1mm to 1mm. Leatheroid electrical insulation gaskets have excellent insulation properties and are used extensively in the electronics industry to insulate hot elements such as contact terminals. They are often used in industrial and domestic electrical appliances and as an insulator in transformers and motors.
Why use Leatheroid Electrical Insulation Gaskets?
The purpose of a gasket is to fill gaps and irregularities between 2 surfaces and minimize unwanted noise and vibrations. They also seal and cushion moving parts to reduce friction and damage.
One material we use to make gaskets is Leatheroid. A lightweight and cost-effective material, Leatheroid electrical insulation gaskets are suited to a wide range of applications.
Often used for spacing, sealing and insulation, Leatheroid electrical insulation gaskets function to provide a barrier to restrict electrical current. This prevents electrical conductors from coming into contact with people or tools during installation or repairs.
Different Types of Electrical Insulation
Here at Advanced Seals & Gaskets Ltd, we work closely with a network of suppliers and manufacturers to ensure we offer a wide variety of products while keeping lead-times to a minimum. Electrical insulation materials available from us include:
- Epoxy Glass: This material is green coloured and offers good mechanical strength. It also offers good chemical, electrical and radiation resistance, low moisture absorption and a working temperature of up to +120℃.
- Kapton: Kapton is a polyamide film that offers strength as well as chemical, electrical and thermal properties. This enables products manufactured using Kapton to withstand vibration and extreme temperatures.
- Leatheroid: Leatheroid is a grey/blue coloured paper material, also sometimes called Elephantidae. This material is often used within the electrical industry to insulate hot elements.
- MICA: Often used to replace asbestos, MICA is a mineral-based sheeting material that offers excellent mechanical performances, is resistant to chemicals and provides excellent electrical and thermal insulation.
- MYLAR: A is an extremely strong, flexible polyester film. MYLAR is an excellent insulation material offering moisture resistance an excellent insulation.
- Nomex: Manufactured using Nomex paper or Nomex board, it can withstand high temperatures, has high mechanical and dielectric strength, and is an excellent insulation material.
- Presspahn: Manufactured using kraft wood pulp. Presspahn sheets have excellent physical and mechanical properties and are generally used as electrical insulation.
- SRBF: This material is a resin bonded fibre material that is tough and rigid, with an operating temperature of 120℃. It offers low water absorption and is resistant to wear, impact and chemicals.
- SRBP: Also known as synthetic resin bonded paper, SRBP is manufactured using layers of paper and synthetic resins. This material is suited to high and medium voltage application.
- Valox: This material is an excellent electrical insulation material that also offers flame retardant properties.
- PTFE: Often found in circuit boards, PTFE is a non-conductive plastic material used to produce electrical insulation sheets. PTFE sheets are suitable for high-temperature applications and have a high melting temperature.
- PVC: A tough, lightweight material offering chemical, abrasion and moisture resistance.
Benefits of using Leatheroid Electrical Insulation Gaskets?
- Excellent electrical strength
- Mechanical resistance
- Highly durable
- Flexible
- Increased electrical strength (12kv per millimetre) when bonded with polyester film
- High dielectric strength
- Cost effective
- Lightweight feel
Advantages of using Leatheroid Electrical Insulation Gaskets
Leatheroid electrical insulation gaskets offer many advantages to customers as they are strong, durable, lightweight and offer excellent dialectic and electrical properties. Besides preventing electrical arcing, the Leatheroid electrical insulation products can also be used in a variety of other applications where electrical insulation is required.
