Conductive Fabric Sheets
Conductive Fabric Sheets

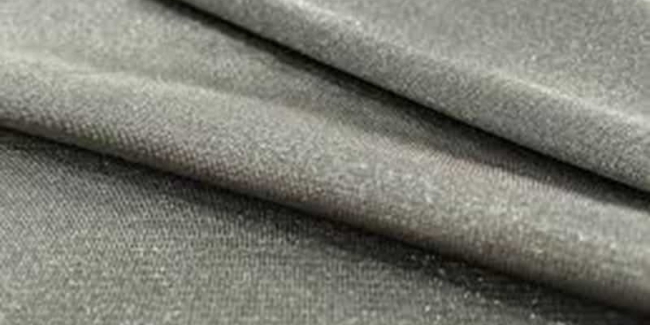

Conductive Fabric Sheet – an innovative and high-performance material designed to excel in various industrial applications. Our commitment to quality and innovation ensures that our Conductive Fabric Sheets offer unmatched conductivity, shielding, and reliability across diverse industries.
Key Features:
- Premium Conductive Fabric Material: Our Conductive Fabric Sheets are meticulously crafted using high-quality conductive fabric, chosen for its exceptional electrical conductivity, shielding capabilities, and durability. This material forms the basis for sheets that perform consistently under demanding conditions.
- Electrical Conductivity: Conductive Fabric Sheets are designed to provide effective electrical conductivity, making them ideal for applications where grounding, electromagnetic interference (EMI) shielding, or electrical connections are essential.
- EMI Shielding: Our sheets are engineered to provide efficient electromagnetic interference (EMI) shielding, helping to prevent interference with sensitive electronic devices and equipment.
- Versatile Performance: Engineered for versatility, Conductive Fabric Sheets excel in applications requiring electrical grounding, EMI shielding, or conduction of electrical signals.
- Durable and Resilient: The fabric material used in our sheets is known for its durability and resilience, ensuring a long-lasting performance in various environments.
- Chemical Resistance: Our Conductive Fabric Sheets exhibit resistance to a range of chemicals, enhancing their suitability for applications involving aggressive fluids and environments.
- Easy Machinability: Conductive Fabric Sheets are easily machinable, allowing them to be cut, shaped, and formed to meet specific shielding or conduction requirements.
- Customization: At Advanced Seals and Gaskets, we understand that industries have unique needs. Our Conductive Fabric Sheets can be customized in terms of size, shape, and specifications to meet the specific requirements of your applications.
- Easy Installation: The design of our Conductive Fabric Sheets facilitates easy installation, simplifying assembly, replacement, or integration into electronic systems.
Here at Advanced Seals & Gaskets Limited, we offer a vast catalogue of products that can be tailored to meet our customers specific requirements. Among the product ranges we offer is RFI/EMI/EMC Conductive Fabric Sheets. RFI/EMI/EMC Conductive Fabric refers to a lightweight material such as Nylon that is combined with conductive metals. This combination results in a material that combines the flexibility and breathability of a fabric with the electrical properties of a metal, allowing it to be used to shield complete rooms, wrapping cables, gaskets and many other products. In addition, RFI/EMI/EMC Conductive Fabric can be manufactured plain or with self-adhesive backings on one or both sides.
Whether we manufacture as a one-off or in large quantities, we work closely with our customers throughout the manufacturing process to provide a completely bespoke service. Utilizing state-of-the-art machinery and a highly trained workforce, we produce top quality products to meet a wide range of specifications.
RFI/EMI/EMC Conductive Fabric is available from us in many forms including:
Applications:
- Electronics Manufacturing: Conductive Fabric Sheets are essential in electronics manufacturing, providing EMI shielding, grounding, and conduction of electrical signals in devices and equipment.
- Telecommunications: These sheets find application in telecommunications equipment to prevent interference and ensure proper grounding.
- Medical Devices: Conductive Fabric Sheets are used in medical devices and equipment to provide electromagnetic compatibility (EMC) and protect sensitive electronics.
- Aerospace and Defense: These sheets play a role in aerospace and defense applications, providing EMI shielding and grounding in electronic systems.
- Automotive Electronics: Conductive Fabric Sheets contribute to EMI shielding and grounding in automotive electronics, ensuring proper functionality and reducing interference.
At Advanced Seals and Gaskets, we prioritize innovation and performance in our Conductive Fabric Sheets. Their electrical conductivity, EMI shielding capabilities, and durability make them invaluable in industries where reliable conductivity and shielding are paramount. Choose Advanced Seals and Gaskets' Conductive Fabric Sheets to elevate your industrial processes with top-tier shielding and conduction solutions that offer exceptional durability and reliability.
Product Enquiry
For information on Conductive Fabric Sheets please complete the following quick enquiry or call us on +44(0)1384 252555.
Product Specification & Key Characteristics:
- Standard Thickness: 0.055mm
- Colour: Grey, copper, silver
- Temperature Range: -40°C to +85°C
- Surface Resistance: ≤0.05 Ω/cm²
- Shielding Effectiveness: 10MHZ - 82, 3GHZ - 68
Surface Resistivity: <0.06
Full technical data can be supplied upon request,
or downloaded from our online portal.
What is RFI/EMI/EMC Conductive Fabric?
The term RFI/EMI/EMC material refers to a polyester or nylon fabric that can be nickel/copper or silver-plated to create a highly conductive material.
An RFI/EMI/EMC material is designed to prevent electronic devices from being disturbed by RFI (radio frequency interference) and EMI (electromagnetic interference) as well as to insulate devices in order to minimize interference. Advanced Seals and Gaskets Ltd offer RFI/EMI/EMC materials in pre-cut parts or as complete rolls or sheets, allowing customers to cut their own products as and when needed.
Why use RFI/EMI/EMC Conductive Fabric Sheets?
Our customers often use RFI/EMI/EMC Conductive Fabric Sheets to create their own products that create a seal and dissipate static energy and mitigate unwanted electrical interference.
All electronic devices are capable of generating electromagnetic or radio frequency interference. These interferences can cause disturbances within electronic devices, which may in turn affect the performance of the circuit within the device. In addition to providing thermal regulation, antibacterial and hypoallergenic properties, conductive fabric sheets facilitate the integration of 'soft networks' into fabrics, making them smart fabrics.
RFI/EMI/EMC Shielding Products Available
Our relationships with our various suppliers and manufacturers ensure we can offer a wide selection of products at an affordable price while keeping lead times to a minimum. RFI/EMI/EMC shielding products available from us include:
- Conductive Fabric: A polyester or nylon fabric that can be nickel/copper or silver-plated to create a highly conductive material. This fabric is wrapped around a sponge and formed into usable profiles such as gaskets.
- Conductive Silicone: Products produced using a silicone or fluorosilicone material that has been impregnated with electrically conductive particles prior to being cured. Conductive Silicone gaskets not only provide EMI/RFI shielding but will also act as seals against dust and water.
- Gap Pads: Also known as filler pads. They are made from a silicone polymer combined with a thermal substance such as ceramic and then cured. Gap pad gaskets are used to fill uneven surfaces and air gaps which provide a thermal interface between heat sinks and electrical devices.
- Knitted Mesh: This material is created by knitting or weaving wires such as aluminium, steel, Monel or tin-plated copper-clad steel in sections or specifically shaped gaskets. This mesh can be used on its own or as a sleeve wrapped over a sponge such as neoprene, silicone or EPDM.
- Oriented Wire: Manufactured using silicone sponge and solid variants, combined with wires embedded vertically into the polymer. Oriented wire gaskets provide a high level of oil-resistant shielding as well as environmental protection.
- Sil-Pad: Sil-Pad gaskets perform in a similar way to gap-pads but are more flexible and comfortable. The material is constructed to enhance performance and contains a variety of materials including fibreglass, silicone rubber, polyamide/polyester films and fillers.
- T-flex: T-flex is a soft gap-filling interface pad composed of a silicone elastomer, boron nitride filler and reinforced with fibreglass. Tflex is a cost-effective gap filler thermal interface material with excellent thermal performance, it is used in applications such as cooling components, storage drives, heat pipes, and engine control units.
- Tgon: This is manufactured in various grades and thicknesses using synthetic graphite. Tgon gaskets are generally used for thermal transfer and conductivity as opposed to electrical isolation.
- Tguard: Produced using a glass fibre supported silicone elastomer with ceramic oxide filler, Tguard creates a thermally conductive and electrically insulating material.
Benefits of using RFI/EMI/EMC Conductive Fabric Sheets?
- Moisture and dust protection
- Excellent surface conductivity, shielding effectiveness and corrosion resistance
- High temperature resistance
- Available in various woven and non-woven polyester or nylon substrate configurations
- Flexible
- Anti-allergy and Anti-Bacterial properties
Advantages of using RFI/EMI/EMC Conductive Fabric Sheets
RFI/EMI/EMC Conductive Fabric sheets offer many advantages to customers due to their shielding, anti-bacterial and anti-allergy properties. They prevent electromagnetic waves both internal and external, from interfering with devices, allowing them to operate smoothly.
In addition, RFI/EMI/EMC fabrics allow a number of electrical devices to operate correctly even in the presence of each other as the Radio Frequency Interference and Electromagnetic Interference levels are controlled.
Conductive fabrics are used in a variety of applications including wearable medical devices, notebook computers, plasma display panels, printers, and global positioning systems (GPS).
